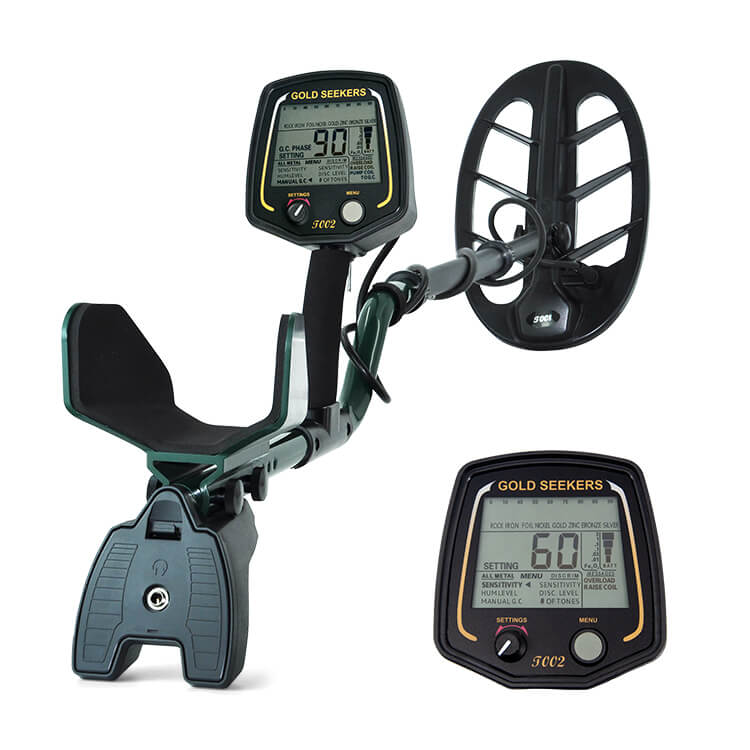

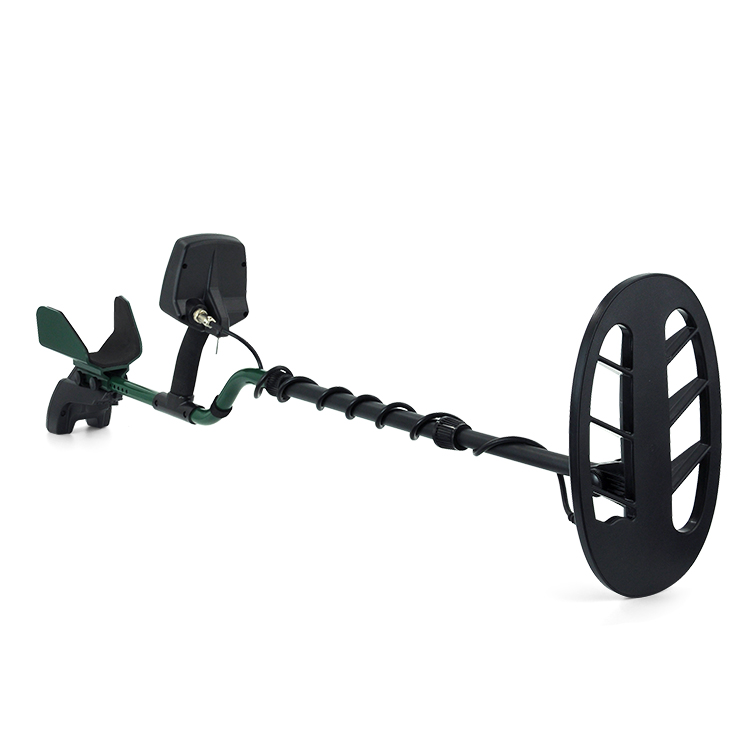

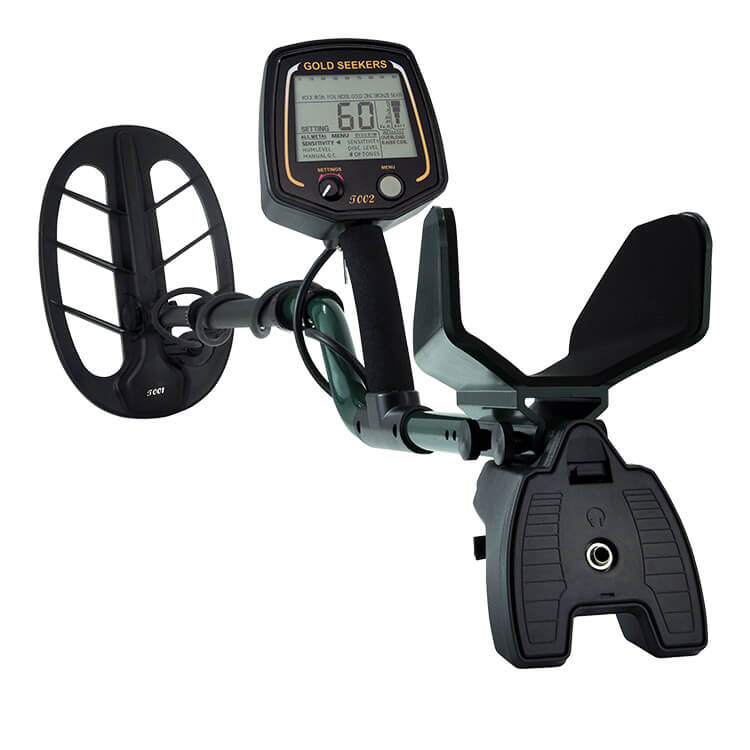

T002 Handheld Metal Detector

Features

Simple, easy-to-use control
Large LCD screen with target identification and operating control displays
Straightforward menu-driven user interface
Bar graph readout of ground mineral concentration
Trigger-actuated FASTGRABING ground canceling with manual override
Waterproof 11 inch open-frame T002 search coil
Single-Filter All Metal Mode for maximum detection depth
Double-Filter Discrimination Modes for searching in trashy areas
Trigger-actuated target pinpointing with variable audio pitch

Parameters

Batteries: 4 AA, alkaline or NiMH.
Battery Life: Typically 40 hours with good quality alkaline, somewhat less with NiMH rechargeable.
Weight: 3.5 pounds with alkaline batteries installed.
Static Balance: Force in vertical plane normal to elbow 0.47 pounds.
Dynamic Balance: Axial moment 0.29 foot-pounds.
Sweep Effort: Lateral moment 5.2 foot-pounds.
Operating Principle: VLF induction balance.
Operating Frequency: Nominal 13 kHz, quartz crystal timing reference.
Basic Sensitivity: 5*109 root Hertz (detectivity).
Lag Coefficient: 70 milliseconds.
Reactive Overload: Approximately 10,000 micro-cgs units (volume susceptibility).
Resistive Overload: Approximately 1,200 micro-cgs units (volume susceptibility).
Ground Cancellation Range: From ferrite to salt, inclusive.
Operating Temp Range: -4 to +122 degrees F (-20 to +50 degrees C).
Operating Humidity Range: 0 – 90% non-condensing.

Applications

Coinshooting is searching for coins, usually in places like parks, schoolyards, church lawns, and people’s yards.
Relic Hunting is searching for historical artifacts.
Gold Prospecting is searching for the gold. To be a successful prospector, learn the geology of the area your are prospecting, learn what geological processes created the gold, learn to identify the various rock and mineral types which are typical of that area.
Hillsides are the best areas for gold prospecting using a metal detector, because hillsides cannot be cleaned put by panning and dredging the way streams can.
